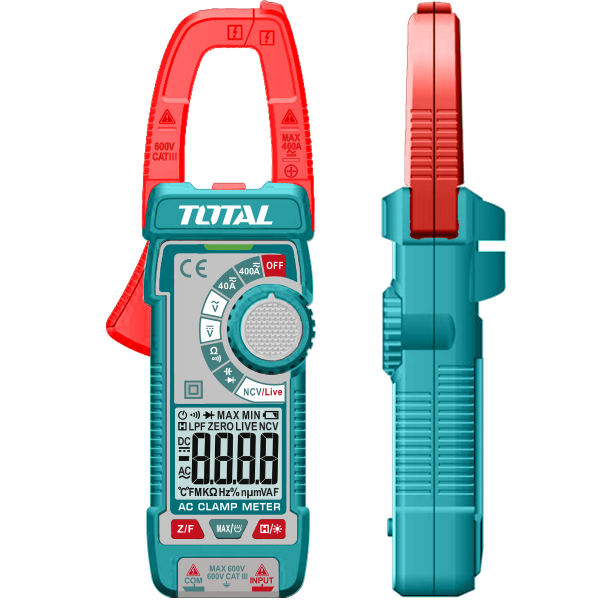

TOTAL Digital DC/AC Clamp Meter 4000 Counts, 400A, NCV with Flashlight-TMT762002

The TOTAL Digital DC/AC Clamp Meter (TMT762002) is a compact and efficient measuring tool designed for everyday electrical testing and maintenance. Featuring a 4000-count True RMS display, it provides accurate readings for both AC and DC current and voltage measurements.

With a measurement capacity of up to 400A, this clamp meter is ideal for electricians, technicians, and DIY users. It includes essential functions such as resistance and capacitance measurement, diode testing, and Non-Contact Voltage (NCV) detection for added safety.

Designed for convenience, the built-in flashlight allows operation in low-light conditions, while features like data hold, auto power-off, and low battery indication enhance usability. Supplied with AAA batteries and packed in a double blister, it is ready for immediate use.

Key Features

• True RMS Display: 4000 counts for accurate measurements
• AC/DC Current Measurement: Up to 400A
• Multi-Function Tool: Measures voltage, resistance, and capacitance
• NCV Detection: Non-contact voltage detection for added safety
• Built-in Flashlight: Ideal for low-light working environments
• User-Friendly: Data hold and auto power-off functions
• Safety Indicators: Low battery indication and diode test capability
• Compact Design: Lightweight and easy to carry

Specifications

• Brand: TOTAL
• Model: TMT762002
• Product Type: Digital DC/AC Clamp Meter

Display:

• 4000 Counts True RMS

Current Measurement:

• DC Current: 4A / 40A / 400A
• AC Current: 4A / 40A / 400A

Voltage Measurement:

• DC Voltage: 400mV / 4V / 40V / 600V
• AC Voltage: 400mV / 4V / 40V / 600V

Resistance:

• 400Ω / 4kΩ / 40kΩ / 400kΩ / 4MΩ / 40MΩ

Capacitance:

• 4nF / 40nF / 400nF / 4µF / 40µF / 400µF / 4mF

Additional Functions:

• Data Hold
• Flashlight
• NCV (Non-Contact Voltage Detection)
• Diode Test
• Low Battery Indication
• Auto Power Off

Power Supply:

• 2 × LR03 AAA Batteries

Packaging:

• Double Blister

In the Box

• 1 × TOTAL Digital DC/AC Clamp Meter
• 2 × AAA Batteries
